Patient Stretcher Trolley
share

Product Name: Patient Stretcher Trolley

Model Number: JDC-ZY115

Dimensions: L1930 * W663 * h510 - 850 mm

Material: Cold rolled steel, Aluminum alloy, PP

Essential Information
Product Name Patient Stretcher Trolley
Model Number JDC-ZY115
Dimensions L1930 * W663 * h510 – 850 mm
Material Cold rolled steel, Aluminum alloy, PP

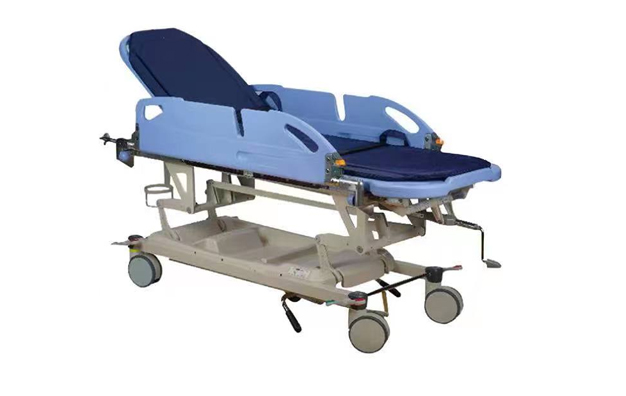

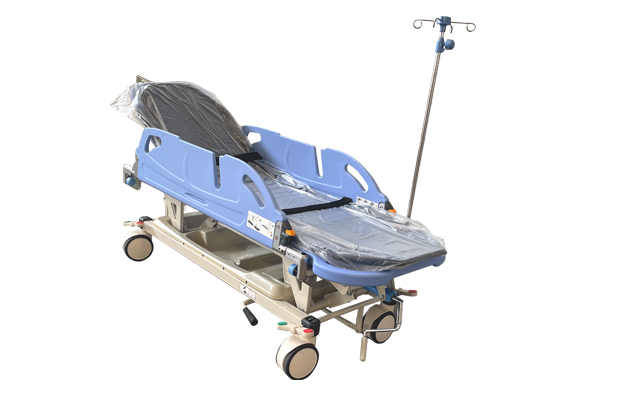

Product Display

Product Material
1. Cold rolled steel and aluminum alloy frame with powder coating;
2. PP hydraulic spring side rails, easy operation by a single hand;
Product Feature
1. Backrest adjustment 0- 70° by gas spring;
2. Height adjustment 510-850mm by manual crank, overload protection function;
3. The height of the side rails is 300mm, which is safer for patients. It can be fixed horizontally to increase the width of the bed and provide a comfortable place for the infusion patient’s arms. It is equipped with double safety locks for locking to prevent misuse;
4. There is an angle display on the side rails, and the angle of the back rise can be seen clearly; there are grooves in the middle of the side rails on both sides to prevent the catheter from slipping and facilitate infusion drainage;
5. Four 150mm diameter anti-winding central brake casters. Internal steel bracket, double bearing cylindrical structure, large load capacity;
6. Control pedals are installed on both sides of the trolley, and the center fifth wheel can move freely when it is retracted; the fifth wheel has a spring and shock absorbing mechanism, which can better pass through bumpy roads;
7. There is a two-stage tray under the bed body, the tray is divided into two parts with different sizes and depths, there are 6 leaking holes, which are easy to use, the tray can bear 10Kg;
8. Infusion stand storage rack, which can fix and store the infusion stand;
9. Oxygen cylinder shelf, which can hold oxygen cylinders up to 7 liters and can be rotated. It can be stored under the bed when not in use, and can be rotated out when in use;
10. Mattress: thickness 25mm, fabric surface waterproof treatment, easy to clean; anti-static three-stage structure, only one person can operate in parallel to dock and transfer patients;
11. There are two drainage hooks on the side of the bed, and there are 6 U-shaped holes on it;
12. Loading capacity: 170KG.
Application Scenario

Because of the excellent quality and service, our product are widely used in the hospital of different countries like the U.K, France, Germany, South Africa, Middle East, Chile, Japan, Australia, Korea and etc.
