Home Products LORI-EF
LORI-EF
share

Product Name: LORI-EF (Three Functions Electric)

Model Number: JDCJH271B

Dimensions: L2250×W1060×H450-750mm

Function: Three Functions

Material: Cold Rolled Steel, HDPE

Essential Information
Product Name LORI-EF (Three Functions Electric)
Model Number JDCJH271B
Dimensions L2250×W1060×H450-750mm
Function Three Functions
Material Cold Rolled Steel, HDPE
Product Introduction

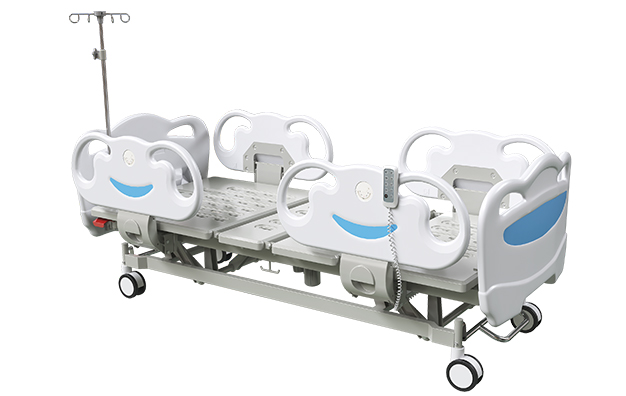

Product Display

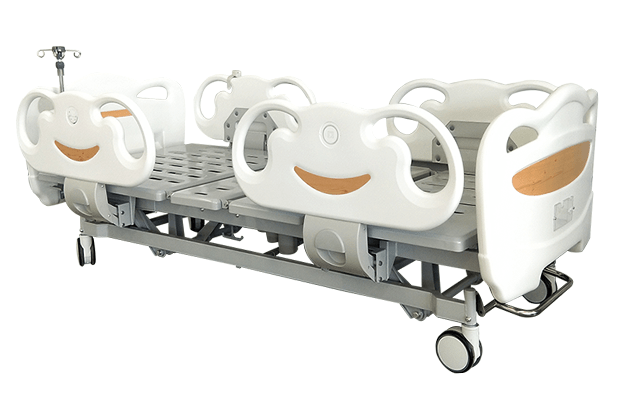

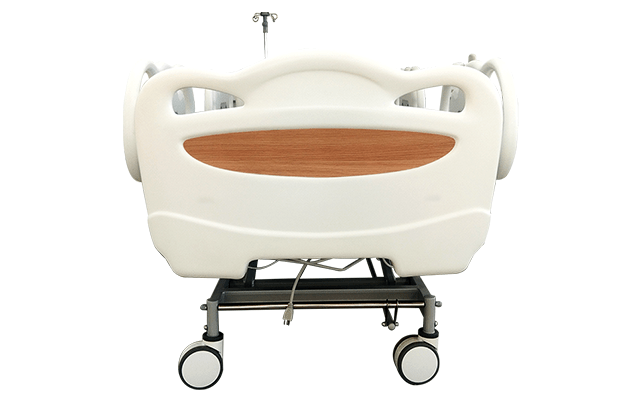

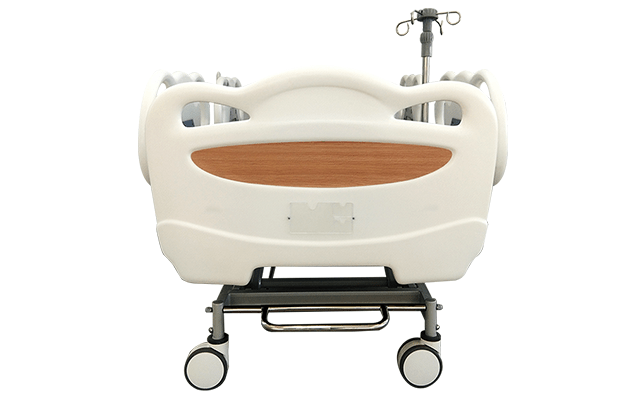

Product Detail Display
Product Material
1. Bed platform, structure and leg are all made of premium cold rolled steel with electrostatic powder coating.
2. The bed platform consist of four foldable sections, stamping frame.
3. Detachable ‘Smile Face’ HDPE bed headboard and footboard.
4. Four-section ‘Smile Face’ HDPE side rails operated by gas spring.
Product Parameters
Product Name LORI-EF (Three Functions Electric)
Model Number JDCJH271B
Dimensions L2250×W1060×H450-750mm
Function Three functions
Material Cold Rolled Steel, HDPE
Brand JD MED
Bed Platform L1980×W900mm
Backrest 0-70°±5°
Legrest 0-40°±5°
Height Adjustment 450-750±10mm
Bed Application Hospital and Clinic
Sticker Color Wood Grain/Royal Blue
Motor 3 Motors
Control Remote Control
Brake Central Brake
Product Feature
1. Backrest Adjustment: 0-70°±5°, Legrest Adjustment: 0-40°±5°, Height Adjustment: 450-750±10mm, Auto-contour.
2. Backrest radiolucent board and X-ray cassette (optional function) .
3. Three motors, high quality and noise-free, with remote control.
4. Angle indicator on backrest side rails.
5. The four corners of the bed body have orthopedic traction frame holes, which can be used for the clinical use of orthopedics when needed (optional function).
6. Clear acrylic head card for patient name display.
7. Four infusion holes, four drainage hooks around the bed.
8. Four 125mm diameter castors with central brake.
9. Load capacity: 250KG.
Optional accessories and function list
Product Application
Because of the excellent quality and service, our hospital beds are widely used in the hospital of different countries like the U.K, France, Germany, South Africa, Middle East, Chile, Japan, Australia, Korea, etc.

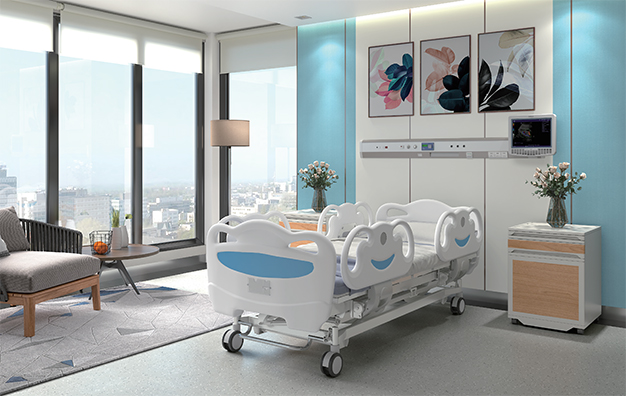

Reference Photos
Packaging&shipping
