| Essential Information | |
|---|---|

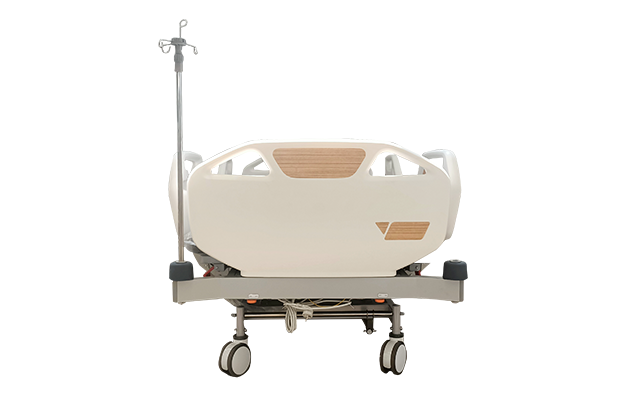

| Product Name | SURI Electric Bed D |
| Model Number | JDCJH381D1/ JDCJH381D2 |
| Dimensions | L2230xW1090xH490-790±10mm |
| Material | Cold Rolled Steel, HDPE |
| Product Introduction | |
|---|---|
 |
| Product Display | |
|---|---|
 |
| Product Detail Display | |
|---|---|
 |
| Product Material | |
|---|---|
| 1. Bed platform, structure and leg are all made of premium cold rolled steel with electrostatic powder coating. | |
| 2. The Bed platform consist of four foldable sections, stamping frame (JDCJH381D1). | |
| 3. The Bed platform is combined by PE plastic pillar, which is easy to clean and detachable (JDCJH381D2). | |
| 4. Detachable HDPE bed headboard and footboard. | |
| 5. Four-section HDPE side rails operated by gas spring. | |
| 6. Four corner bumpers are for bed protective. | |
| 7. The third side rails is made of premium quality cold rolled steel with electrostatic powder coating, which is rotated and lockable (Optional). |
| Product Parameters | |
|---|---|
| Product Name | SURI Electric Bed |
| Material | Cold Rolled Steel, HDPE |
| Brand | JDMED |
| Model | JDCJH381D1/ JDCJH381D2 |
| Dimensions | L2230xW1090xH490-790±10mm |
| Bed Platform | 1980x900mm |
| Backrest | 0-70°±5° |
| Legrest | 0-40°±5 |
| Height adjustment | 490-790±10mm |
| Trendelenburg and Revers Trendelenburg |
0-12°±3° |
| Lateral Lilt | 0-30 ° |
| Brakes System | Central Brake |
| Sticker Color | Wood Grain / Royal Blue |
| Motors | 4 Motors |
| Control Panel | Nurse Control / Remote Control |
| Product Feature | |
|---|---|
| 1. Backrest 0-70°±5°, Leg rest 0-40°±5°, Height adjustment: 490-790±10mm, Trendelenburg and Revers Trendelenburg 0-12°±3°, Auto-contour, Calf Raising. | |
| 2. Four motors, high quality and noise-free, with remote control. | |
| 3. Manual CPR is to make the whole bed surface flatted. | |
| 4. Electric CPR is to make the backrest board flatted quickly. | |
| 5. Angle indicators are on the both side of backrest side rails. | |
| 6. Weighing scale system, accuracy is 10g, (optional function) | |
| 7. Clear acrylic head card for patient name display, Four infusion holes, four drainage hooks around the bed. | |
| 8. Four 125mm diameter castors with central brake. | |
| 9. The length of the bed can be extended 15cm (optional function). | |
| 10. Auto regression reduce the abdominal pressure of patient. |
| Optional accessories and function list | |
|---|---|
 |
| Product Application | |
|---|---|
| Because of the excellent quality and service, our hospital beds are widely used in the hospital of different countries like the U.K, France, Germany, South Africa, Middle East, Chile, Japan, Australia, Korea, etc. |
