| Essential Information | |
|---|---|
| Product Name | SURI-MS (Two Functions Manual) |
| Model Number | JDC-SY181A/ JDC-SY181B |
| Dimensions | L2260xW1050xH500mm |
| Function | Two Functions |
| Material | Cold Rolled Steel, HDPE |
| Product Introduction | |
|---|---|
 |
|
 |

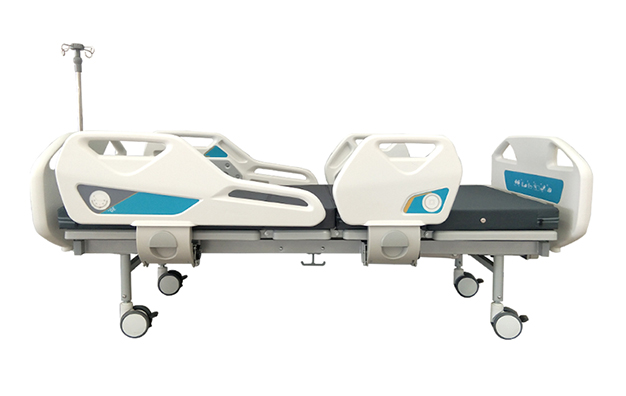

| Product Display | |
|---|---|
 |
| Product Detail Display | |
|---|---|
 |
| Product Material | |
|---|---|
| 1. Bed platform, structure and leg are all made of premium cold rolled steel with electrostatic powder coating. | |
| 2. The Bed platform consist of four foldable sections, stamping frame. | |
| 3. Detachable HDPE bed headboard and footboard. | |
| 4. Four-section HDPE side rails operated by gas spring. | |
| 5. The third side rails is made of premium quality cold rolled steel with electrostatic powder coating, which is rotated and lockable(Optional) |
| Product Parameters | |
|---|---|
| Product Name | SURI Manual Bed |
| Material | Cold Rolled Steel, HDPE |
| Brand | JDMED |
| Model | JDC-SY181A1\ JDC-SY181B1 |
| Dimensions | L2260xW1065xH500mm |
| Bed Platform | 1980x900mm |
| Backrest | 0-75°±5° |
| Legrest | 0-45°±5 |
| Brakes System | Central Brake\ Wheels Brake |
| Sticker Color | Wood Grain\ Royal Blue |
| Product Feature | |
|---|---|
| 1. Backrest 0-75°±5°, Leg rest 0-45°±5°. | |
| 2. Angle indicators are on the both side of backrest side rails. | |
| 3. Bedside card for patient name display, Four infusion holes, four drainage hooks around the bed. | |
| 4. Mechanical crank operation with overload protection. | |
| 5. The screw handle is foldable under the bed footboard. | |
| 6. Four 125mm diameter castors with central brake (JDC-SO181A1) or wheels brake (JDC-SO181B1). | |
| 7. The four corners of the bed body have orthopedic traction frame holes, which can be used for the clinical use of orthopedics when needed (Optional). |
| Optional accessories and function list | |
|---|---|
 |
| Product Application | |
|---|---|
| Because of the excellent quality and service, our SURI Hospital Bed are widely used in the hospital of different countries like the U.K, France, Germany, South Africa, Middle East, Chile, Japan, Australia, Korea and etc. |
| Reference Photos | |
|---|---|
 |
| Packaging&shipping | |
|---|---|
 |
